Hands-On Review: Simmons Titan 70 Electronic Drum Kit

Drum Pads & Cymbal Pads

This kit has a nice lineup of pads and there doesn’t really feel like there’s any major shortcomings in terms of functionality from the pads. If you want a kit with lots of multi-zone pads, this is well worth a close look. Let’s take a look at each of the pads around the kit.

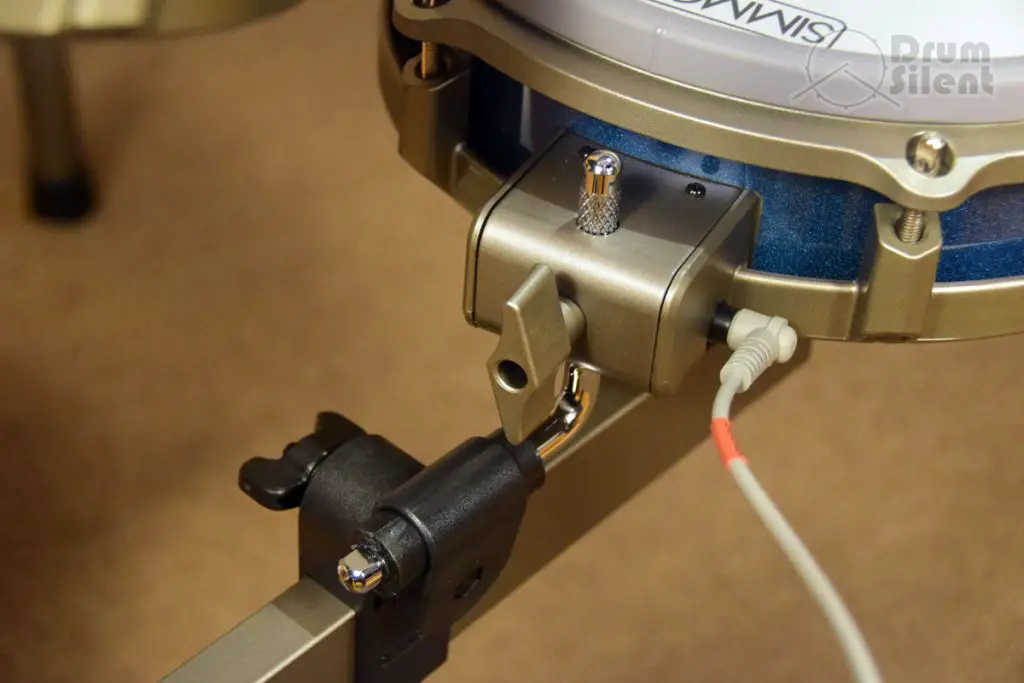

Snare Pad

The snare pad is a 10-inch, dual zone mesh pad. The mesh head is 2-ply and I was able to dial in the tension to feel about the same as what I prefer from a mylar drum head. The dual zone allows you to generate different sounds from both the head and the rim, and the pad also responds well to harder rim shot strikes. The way the snare pad responds makes it feel very dynamic during play for ghost notes to rim shots and everything in between.

The snare pad is fully enclosed with no open air pass-through underneath. I noticed that this actually makes it slightly louder acoustically than the snare on the Titan 50, for example, which was open on the bottom. Something to consider if you’re trying to be as quiet as possible with your kit.

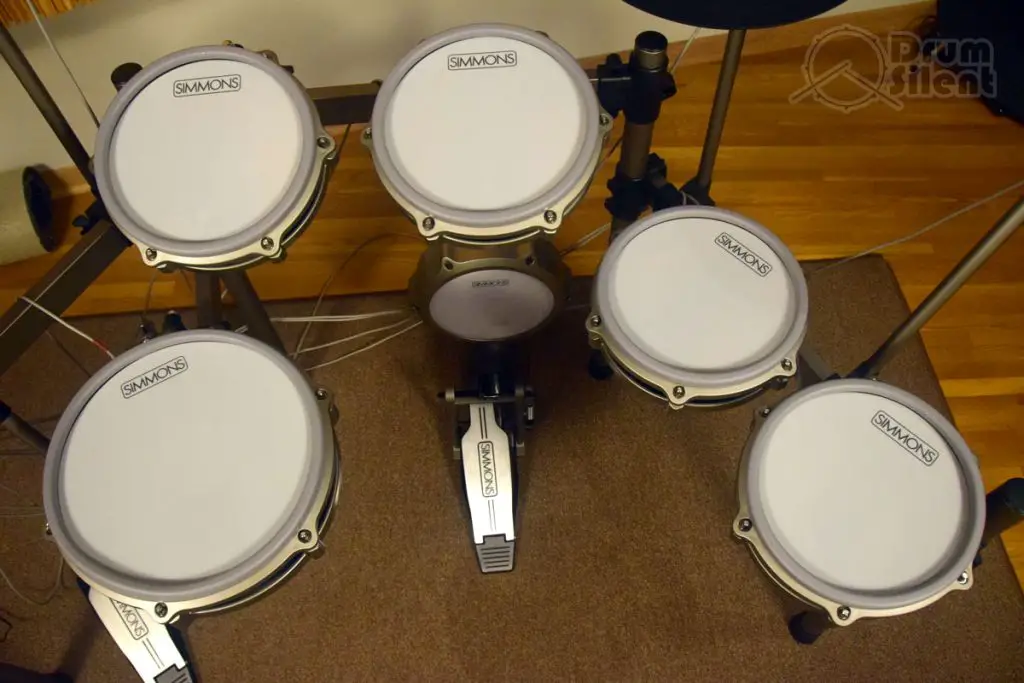

Tom Pads

The tom pads are a little smaller than the snare pad at 8 inches. There are four dual zone tom pads included with this kit. All of the tom pads are dual zone, meaning you can assign different sounds to both the head and the rim of each pad. The dual zone capabilities of the toms on this kit open up a lot of flexibility to build out the scope of the drum kits. Personally, I like to use the rims of the toms for extra cymbal sounds to add some more scope to a drum kit, but it’s up to you how you want to use those extra zones.

I noticed that many of the newer drum kits that Simmons added to the module already have some extra percussive and cymbal sounds added to the rims of the toms. The kits that existed on the Titan 50, for example, haven’t been updated to use the tom rims as much, but you can create custom versions of the kits and build them out a little further.

The Cymbal Pads

The cymbal pads that come with this kit are pretty nice considering the price. I like how they have more zones to work with when compared to the Titan 50, which is currently one level down from the Titan 70 in the drum lineup from Simmons.

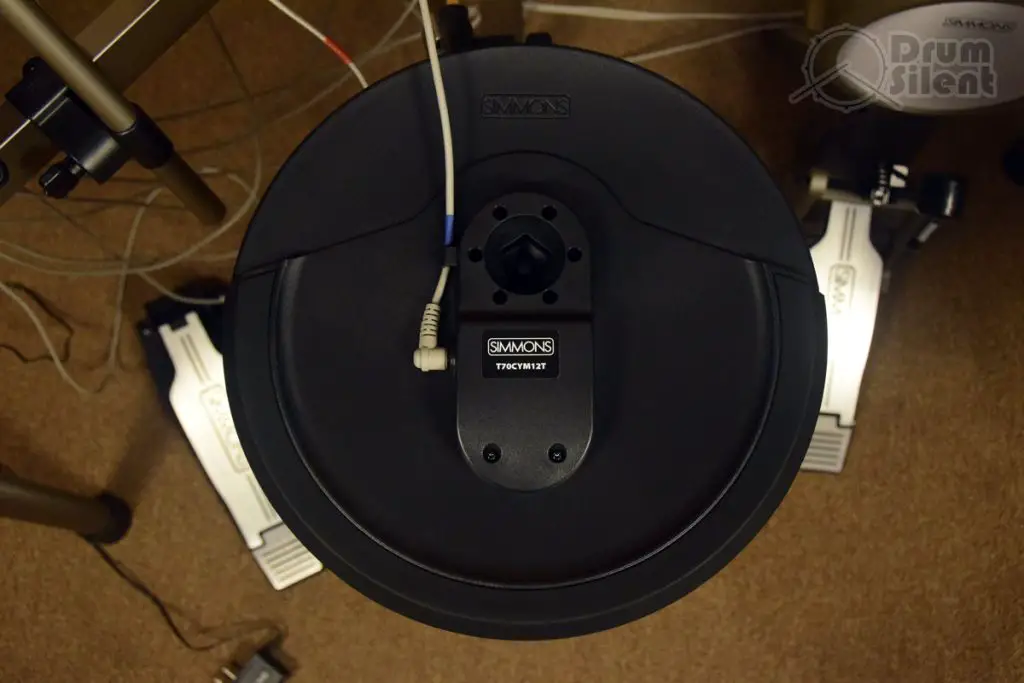

The Triple Zone Ride Cymbal Pad

The biggest advantage that the Titan 70 has to offer in the cymbal department is the addition of a triple zone ride cymbal. The ride has edge, bow and bell zones and can be played very expressively as a result. It’s a little a larger than the crash pads as well, so it visually stands out as a ride pad on the kit. I really like how the ride cymbal plays and it’s one of the better advantages of this kit versus some others in this price range.

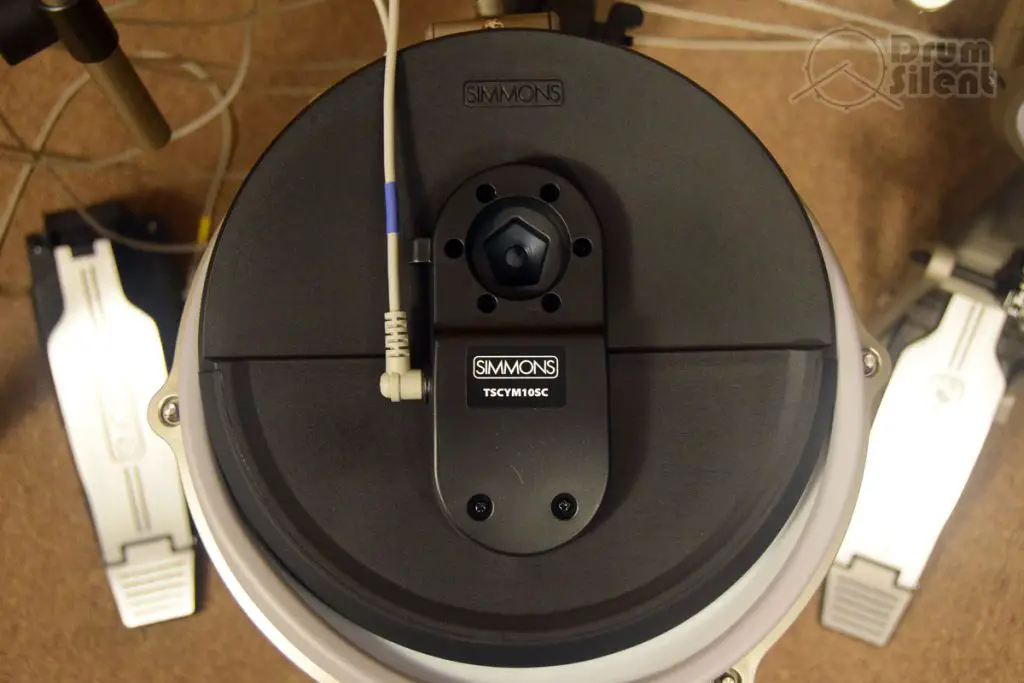

The Crash Cymbal Pads

There are also two single zone crash cymbal pads with a choke feature. While the crash pads are only single zone, they don’t feel as limiting when they are played along with the triple zone ride pad.

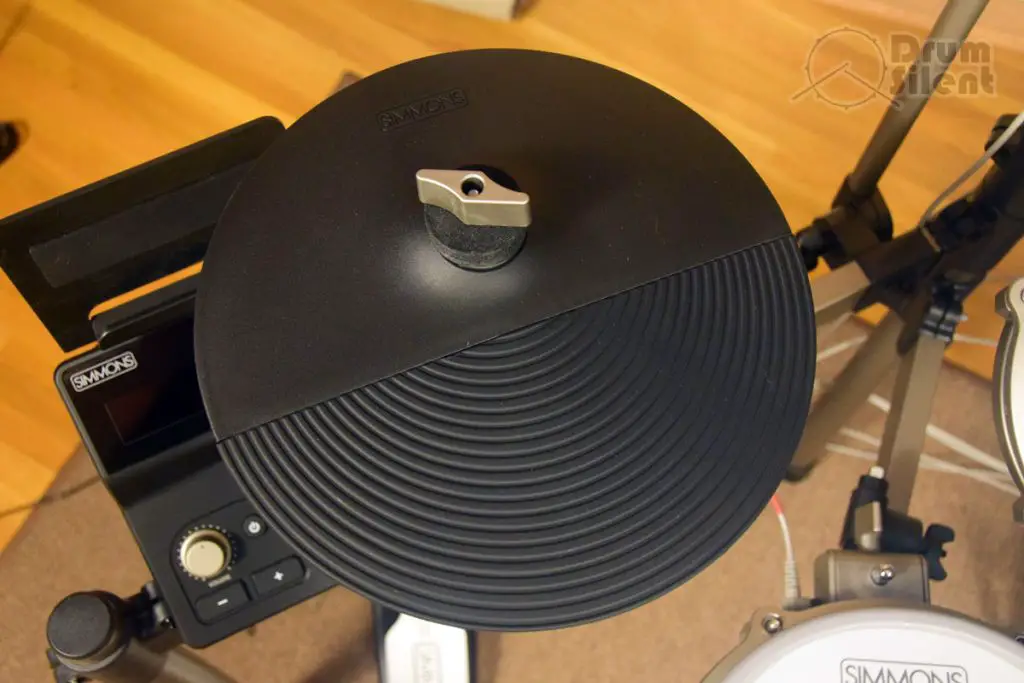

The Hi-Hat Pad

The hi-hat pad is a single zone pad and it’s works in conjunction with the hi-hat controller. Operation between the controller, pad and module is pretty smooth, and once you get used to the feel of the pedal it’s pretty easy to get what you want out of it.

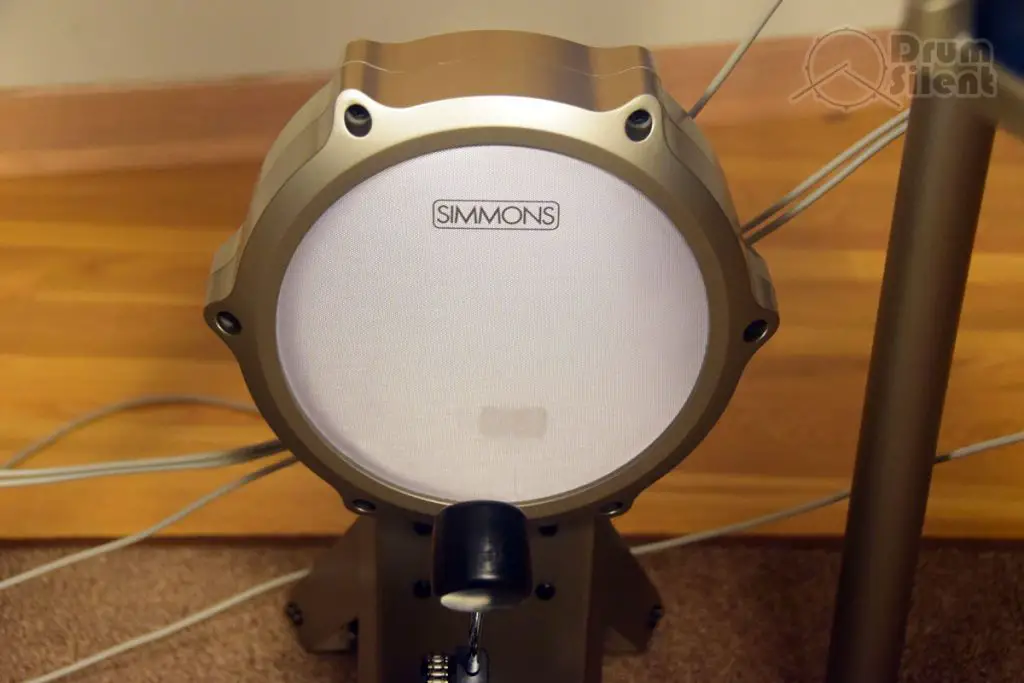

The Kick Pad Tower & Kick Pedal

The kick pad tower that comes with this kit is a new model from Simmons, the T70KP7. It has a round playing surface with a 7 inch diameter, and it’s large enough to give you some flexibility in both horizontal and vertical positioning of the kick beater. I like this pad since I prefer a lower kick beater height and I can lower the beater with no problems, which is something I struggle with on some smaller, more restrictive kick tower pads. It also is large enough for a double bass pedal and it has good response when playing with a double bass pedal.

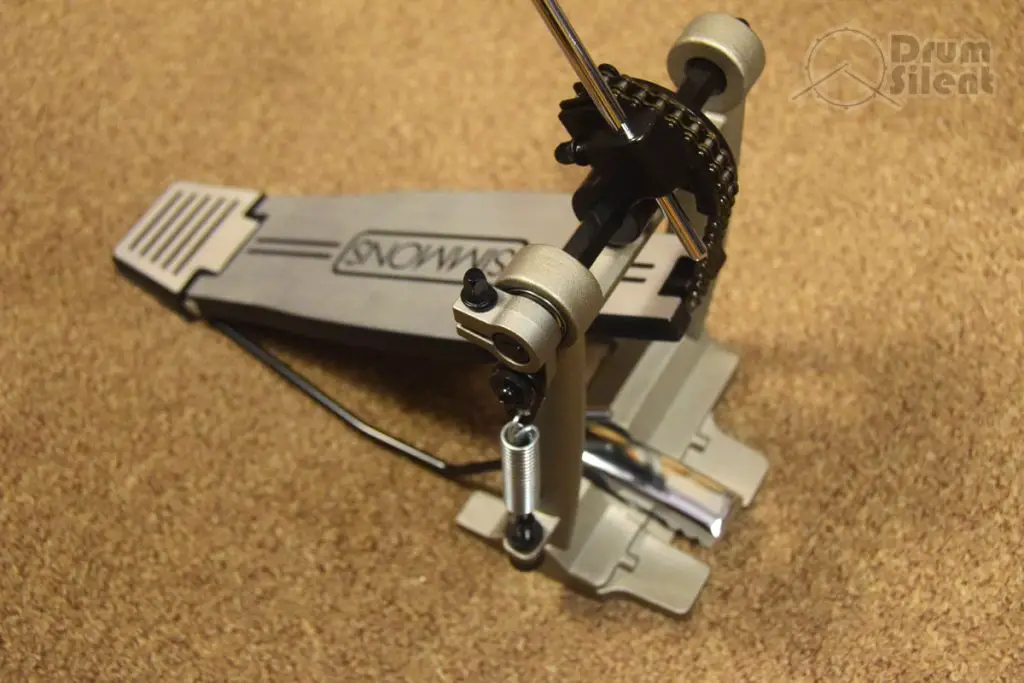

This kit comes with a kick pedal as well, which is nice. It’s a pretty basic kick pedal for sure, but it’s nice for drummers who might just be getting started since it can save a little money over having to buy a pedal separately. For a cheap pedal, it actually plays pretty nicely and the beater height/angle and spring tension can be adjusted to dial in your preferred feel. My main issue with these basic kick pedals that Simmons packs with their kits is that they are always a little squeaky when first put to use, but that’s easily fixed with a small shot of lube where the springs are held in place.

Double Kick Bass

As far as double kick bass pedals go, I think that some pedals could potentially struggle to hook up properly to the kick tower. This is the same thing I ran into with the Titan 50 kick pad tower. I ran into issues with my Axis long boards since they require a wider horizontal surface to properly clip onto. My Tama Iron Cobra double pedal works just fine with the Titan 70 kick pad, however since it doesn’t require as wide of a clip area to attach to the tower. So if your double pedal doesn’t require too wide of a clipping area to attach to a pad or a drum, it’ll probably work fine with this kick pad tower.

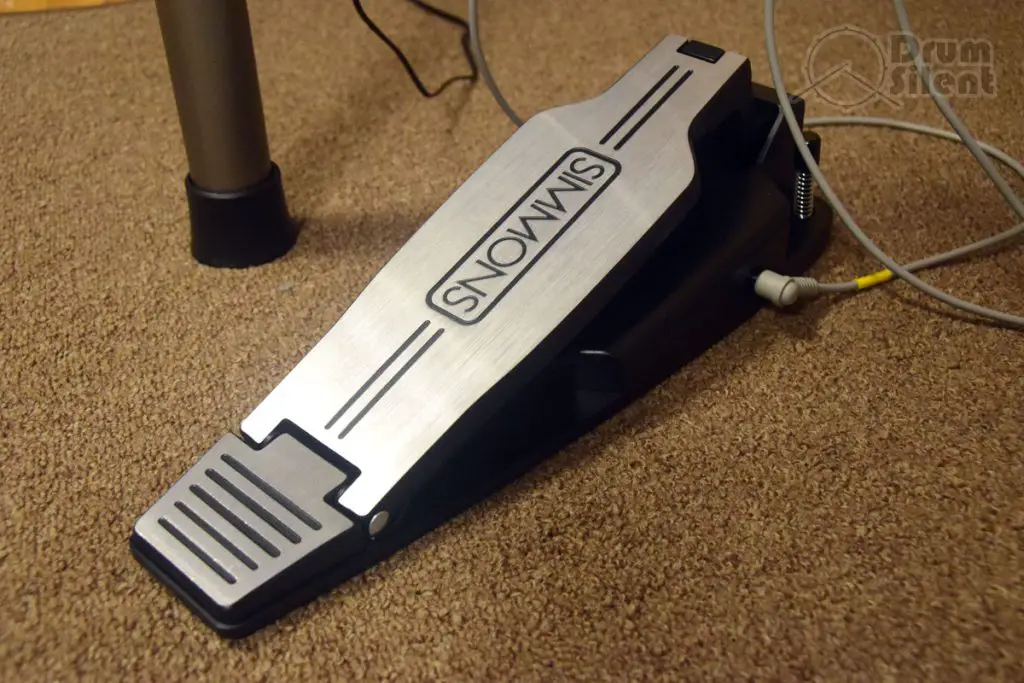

The Hi-Hat Pedal

The hi-hat controller works well but it’s certainly nothing special. It has good enough action to do quicker hi-hat snaps and other techniques. It can also do foot taps, but it can’t do foot splashes, so it does have some limitation in how it works with the drum module.

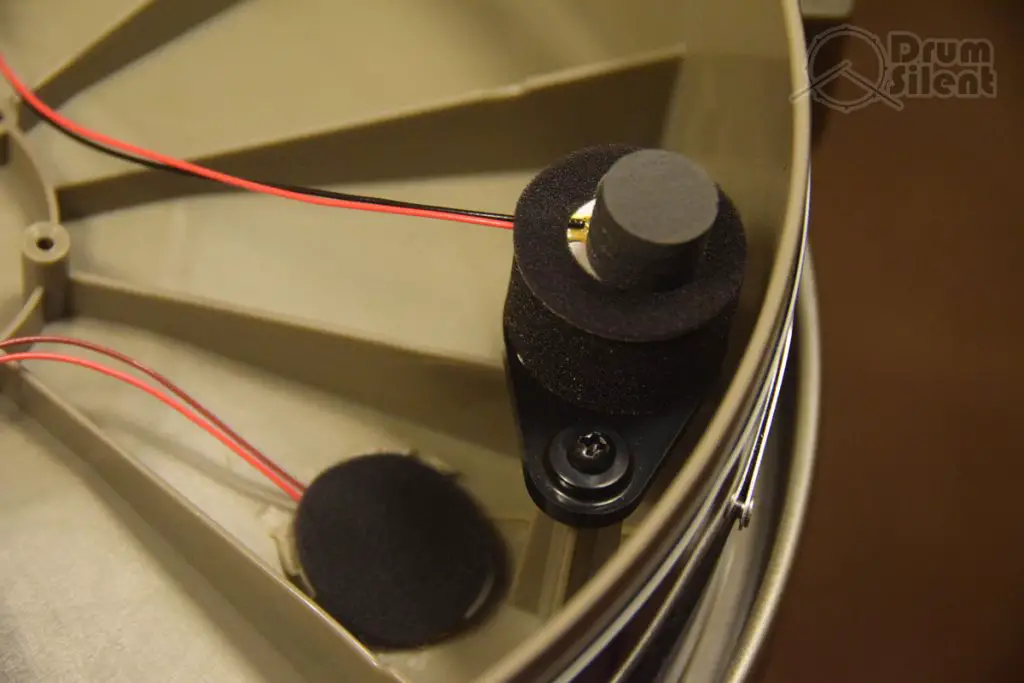

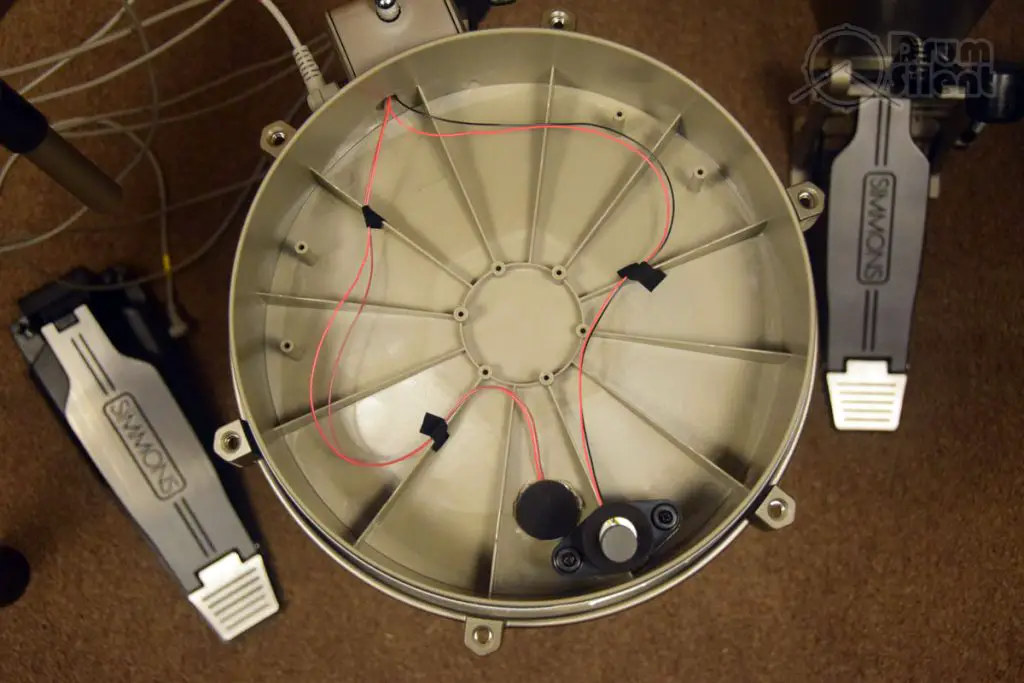

Single Sensor on the Drum Pads

Looking inside the drum pads, it looks like these pads use a single sensor located towards the bottom of the head area. The sensors seem more sensitive than the Titan 50 sensors, but I’m not sure if that’s just my perception or not. Regardless of the sensor placement, I get good response all over the drum head and there doesn’t seem to be any weak spots.

Feel & Playability

Overall, I like how this kit plays and I’m having a lot of fun with it. The multi-zone pads around the kit, especially the triple zone ride pad, make it feel really good to play. The pads are all very responsive and I’m able to play them at different volumes and with different levels of aggressiveness with good response.

The snare pad and the ride pad are my favorite pads on the kit to play. The snare feels very expressive with the way that it handles rim shots, which fits my style of play quite well. The mesh head on the snare feels great and I have it set at a pretty high tension at the moment. The ride is also very nice with good feel for a rubber and plastic pad, and I like having the bell zone.

The tom pads can feel a little small in terms of hit targets, but I don’t mind that since it forces me to work a little more on accuracy. The mesh heads feel good and I like how I can dial them in to feel tighter to looser like acoustic toms might feel as you play down the line. I also really like being able to assign cymbal sounds to the rims to effectively add more cymbals to the kit. It’s a nice way to get more auxiliary cymbals in the mix such as china and splash cymbals.

The crash cymbals play well and respond well when hitting the bow and the edge, even though they are just single zone pads. My biggest issue with the cymbal pads is that they have a somewhat small choke zone, so it can take a little getting used to in terms of where to grab them to enable the choke function. Once you get a feel for the choke zone it’s easier to use though.

The hi-hat pad and controller combo plays pretty well, but sometimes the closed to open action feels like it’s lagging just very slightly. I’m not sure if it’s the pedal or the module. But after playing for a while I get used to it’s action and it doesn’t really cause me any problems. One issue I have noticed with the hi-hat pad is that it is a little less sensitive when striking only the edge. You have to focus on hitting the bow of the pad to get a solid playback. At first this was bothersome for me since I typically like to have my hi-hats flat, but after I tilted the pad towards me more it was easy to work with.

The kick pad just works and I have no complaints with it at all. It’s my favorite Simmons kick pad so far out of the kits that I’ve tried. It feels kind of like a practice pad with it’s playing surface. It works well with my single pedals and my Iron Cobra double pedal.

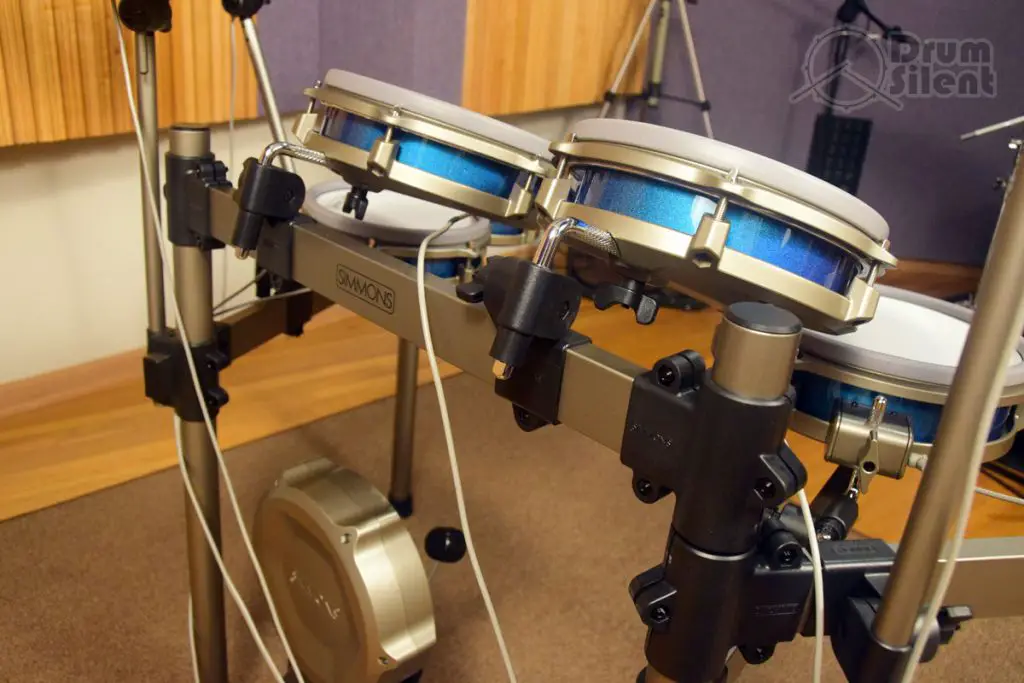

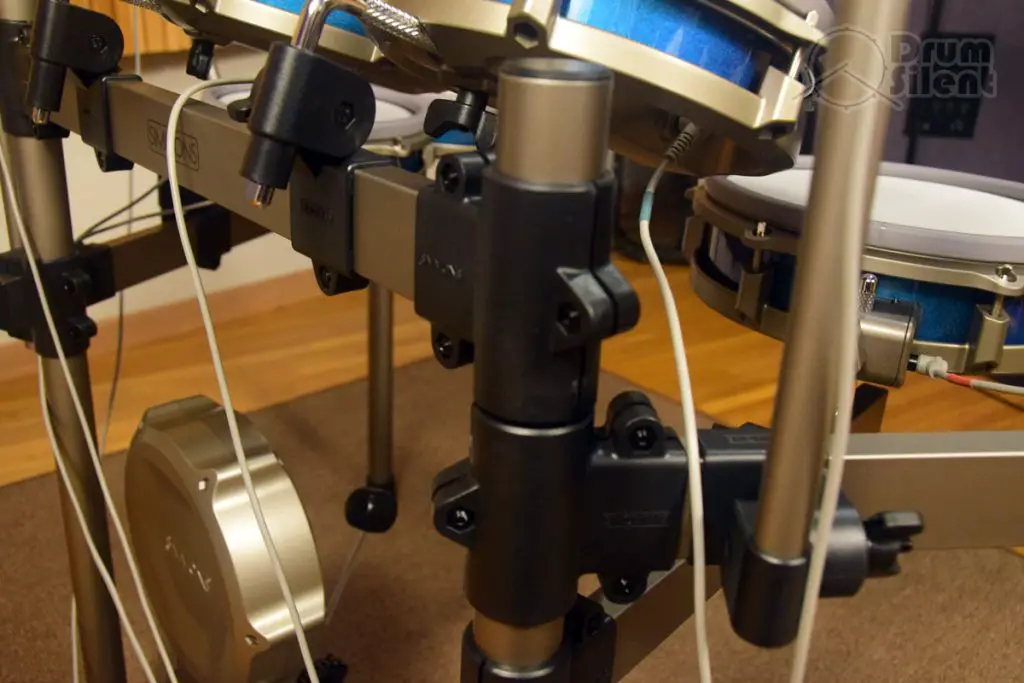

The Rack

The rack for this kit is really nice, I like it quite a bit. It’s sturdy and the rectangular bars help keep brackets from slipping and rotating unexpectedly. It also comes fully assembled in the box which is great. Being assembled out of the box might seem like a small thing, but after putting together many racks for other kits it’s a breath of fresh air.

The height of the rack feels sufficient. I’m taller and like to sit a little higher but I didn’t find this rack to feel short at all. But I did have to raise everything to pretty close to the maximum height allowed.

There’s just enough room on the rack for all the pads and there’s just enough flexibility to move the tom and cymbal pads to where you want them to be.

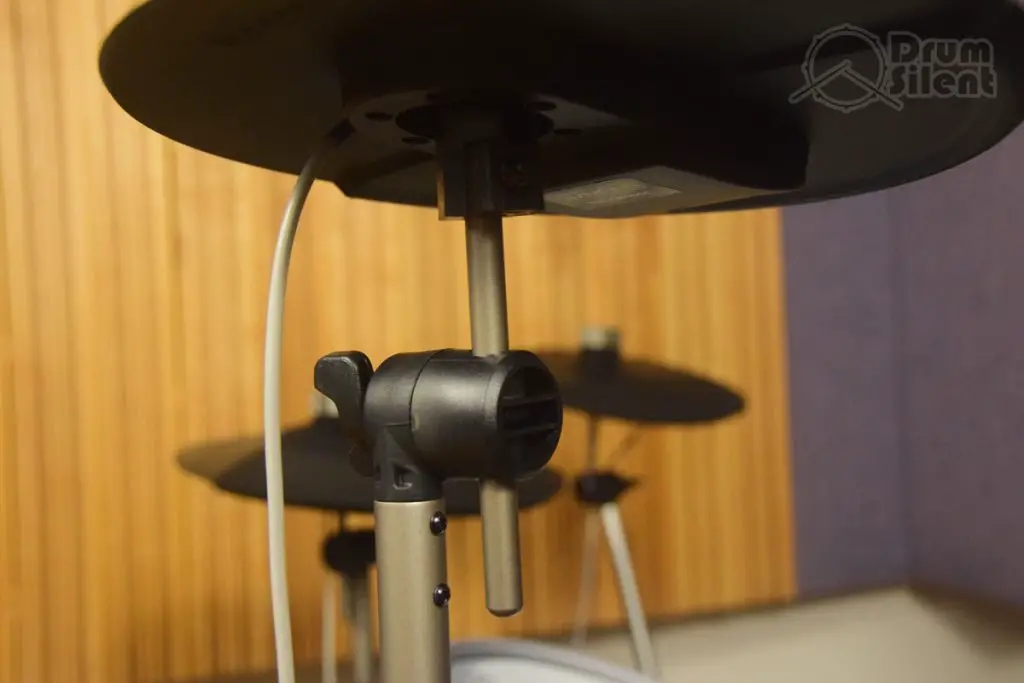

The Cymbal Arms

I found that there were a few points on the cymbal arms that needed to be tightened down well to keep the cymbals from rotating from side to side, but once I found them all everything is staying in place. If you’re finding it hard to keep the cymbals from rotating make sure to look for the lugs that require the key chuck near the top of the cymbal arms, those were loose on my kit and needed tightening, and I kept thinking it was the other clamps that were still loose.

The Drum Module Mount

The one thing that didn’t seem to fit well for some reason was the drum module. I wish there was a way to mount it a little more to the left of the hi-hat pad, since it feels like it’s sitting half under the hi-hat pad. But I also like to position my hi-hat pad pretty far to the left, so maybe it’s just me. It’s a minor issue but something I wish I could resolve. I might have to look into some other rack parts to see if I can find something to move it out to the side a little more.

(Update regarding the drum module mount) I revisited the positioning of the drum module. I ended up swapping the bracket used for one of the floor tom pads with the bracket that the module mounts in. The tom pad brackets have more height. By doing this, I was able to move the module more to the left and mount it a little higher, and it’s not underneath the hi-hat pad anymore. Simmons could remedy the issue from their end by providing the same type of bracket used to mount the floor toms for the drum module rather than one of the rack tom/cymbal brackets.

Sturdiness

The kit feels very sturdy when fully assembled, especially when you get all the clamps tightened properly. I did find that some clamps needed to be re-tightened after the initial setup, I suspect maybe it’s because things tend to settle in a bit after that first round of tightening everything down. But at this point I don’t have any issues with stuff coming loose and it’s been setup and played on for a few weeks now.

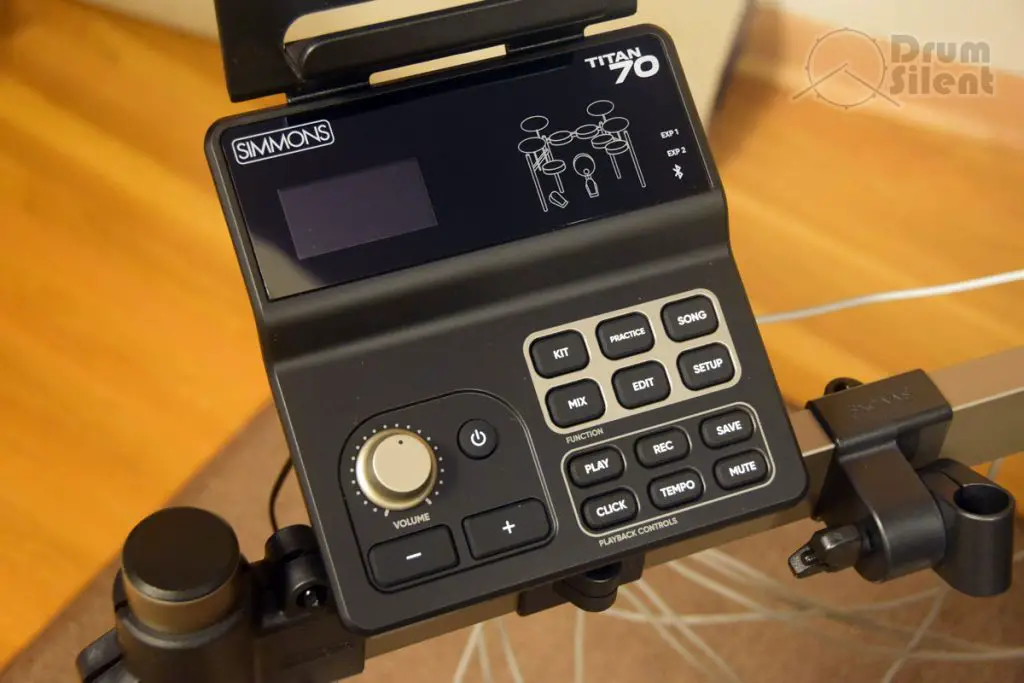

The Simmons Titan 70 Drum Module

The Titan 70 module feels like an updated version of the Titan 50 module, but I suppose that’s the idea here. It offers some nice improvements and additions.

Interface

The module interface is easy enough to use that you can dive in and start doing the basics without consulting the manual. However there are also some deeper functions in there if you take the time to learn how to get to them.

Here’s what you’ll find on the top panel:

• Rec – Enter Record Mode to record a MIDI performance
• Play – Start playback of a song, also works as stop button
• Setup – Enters global settings like trigger sensitivity and MIDI settings
• Save – Press both the Mix/Mute and Play Buttons at the same to time to save kit edits
• LED Display – Shows which kit you are playing, tempo and level
• Drum Display – Lights up drums to identify which drums have been hit
• Bluetooth – Indicates if Bluetooth is connected

Inputs & Outputs

Inputs and outputs are fairly well organized on this module. A 25-pin snake is used to connect the bulk of the pads to the module, and the connector plugs in on the bottom of the module. On the back you get the rest of the connections, except for the headphone output which is on the left side for ease of access.

On The Rear:

• MIDI Output
• USB Connection
• 9v Power Adapter Input

On The Left Side:

• Headphone Output – 1/8″ stereo jack

Scope & Quality of Sounds

The Titan 70 drum module is loaded with Simmons latest and greatest drum kits, and they sound really good. Simmons used the London Bridge studio in Seattle and brought in Don Gunn to engineer the drum recordings and sounds. Don has experience working with popular music acts such as Soundgarden and Peter Frampton.

The result is a pretty nice set of tightly focused drum kits that revolve around common popular music styles. For example, there are drum kits that mimic Metallica’s Black Album drum sound, the 70’s drum sound, country and modern pop drums. Most drummers will likely find a kit that they really like within this lineup, depending on the styles they play.

There are 314 drum voices overall and 50 preset drum kits. There are also 15 user kit slots for custom drum kits.

Bluetooth

This module has Bluetooth built-in, and it can be used for audio and MIDI operations. You can only use either the audio or MIDI feature alone, not both at the same time.

It can be used to input audio into the sound module from an external device like a smartphone. While doing this, you can play along with audio from your Bluetooth devices.

The module can’t use Bluetooth for wireless headphones, due to limitations with latency and delay, so keep that in mind. You can only use wired headphones with this module.

Selecting Kits

This is pretty easy to do on this module. Simple press the kit button and choose a kit. The digital screen will show which kit you have selected.

Adjusting & Editing Kits

Kits can be edited and saved as a new custom kit with one of the 15 custom kit slots. I found the kit editing to be a lot more smooth with the iOS app that via the controls on the module, so I’d recommend trying that out if you have an iOS device like an iPad or an iPhone.

There are some more advanced kit editing features available on this module, which are flexible enough to tweak the sound of your kits to your liking.

For editing drum sounds – you can change the drum sound assigned to each pad, change the pitch, change the EQ, and change the decay time.

Editing kits has a few more options. You can change the level and panning of any of the sounds around the kit. There is a Reverb feature that allows you to send each sound to the reverb send individually, which helps dial in very specific reverb usage around the kit. There is a compression feature allows you to apply compression to the entire kit sound. There is also a high/low EQ feature which affects the overall kit sound.

Song Mode

This mode allows you to play along with audio files or MIDI tracks. You can record your performances along with the songs and play them back, which is helpful for practicing and analysis.

Practice Mode

Practice mode on this module is an extension of the Song mode. Practice mode allows you to play along with the songs and the module will score your accuracy along several difficulty levels.

You can change between a few different practice mode options. You can play along with the song with a click or no click. You can play along with the song with intermittent clicks, which help you get used to playing with no click. You can also play along with the song and click track intermittently cutting out, so that you can get used to keeping time when the music drops out.

Setup Mode

Setup mode is basically the utility settings mode on this module. This is where you’ll adjust things like pad sensitivity and trigger settings. For as basic as this module is, it has a pretty good set of configuration options. The options you can adjust include:

• Local MIDI – let’s you choose if the MIDI control is coming from the module or a DAW
• Click Record – metronome settings for recording
• Bluetooth – is always on but can be turned off
• Auto Power Off – turns off the kit automatically when it’s sitting idle for while
• Tom Type – if you upgrade to dual zone tom pads you can change the setting here to make the drum module work with the pads
• Ratio – adjusts the sound ratio of dual zone pads

Metronome

The metronome settings are pretty standard, and there isn’t really anything flashy going on here. You can change volume, tempo and time signature.

What’s Not?

Here’s what’s not included with this kit or things you might want to pick up:

• Drum throne
• More drum sticks
• Headphones
• A better bass drum pedal
• Heavy rug
• iOS device to use the app

Setup & Assembly

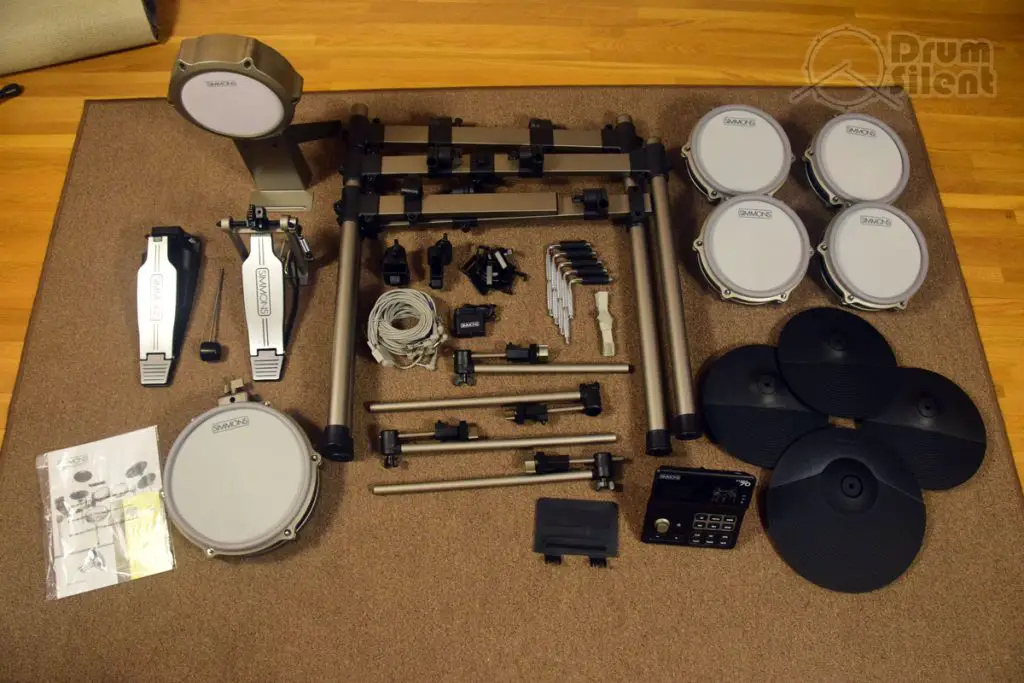

I found this drum kit easy to setup despite the large amount of pads that need to be mounted. The rack comes fully assembled which really cuts down on setup time. The kit is pretty easy to assemble just by looking at the parts, but the instructions are pretty good and I’d recommend reading through them quickly regardless, just so you don’t miss anything. I think the thing I spent the most time on was untangling the cable snake and connecting all the cables. Overall, you’ll probably be looking at about an hour or less to get this kit up and running.

This kit also looks like it could work setup as a left handed kit, but I haven’t personally tried that myself. With the way it’s designed, you should be able to flip the rack around and mount all the pads in a mirrored fashion.

Warranty

Simmons offers a 2 year warranty to cover defects in workmanship and material. This is one year longer than some other brands offer, which is nice.

The Verdict

The Simmons Titan 70 drum kit is a nice addition to the Simmons lineup. It has multi zone pads in the right places along with a great sounding drum module for a fun drumming experience.

The snare pad and the ride pad really stand out as the best parts of this drum kit. The multi-zone toms also add more zones to place more cymbals and other sounds within your custom kits. The hi-hat and crash pads are sufficient but could be improved upon. The kick pad is great and is a nice size for double bass and beater height flexibility.

The sound module sounds great. Advanced sound design is limited, but you can change drum sounds and use some basic effects such as reverb, compression and EQ as well as save custom kits. The app makes it a breeze to edit and customize kits in a visual manner.

If you’re looking for a great sounding kit with a triple zone ride pad and dual zone toms for less than $1000, this is a good pick.
